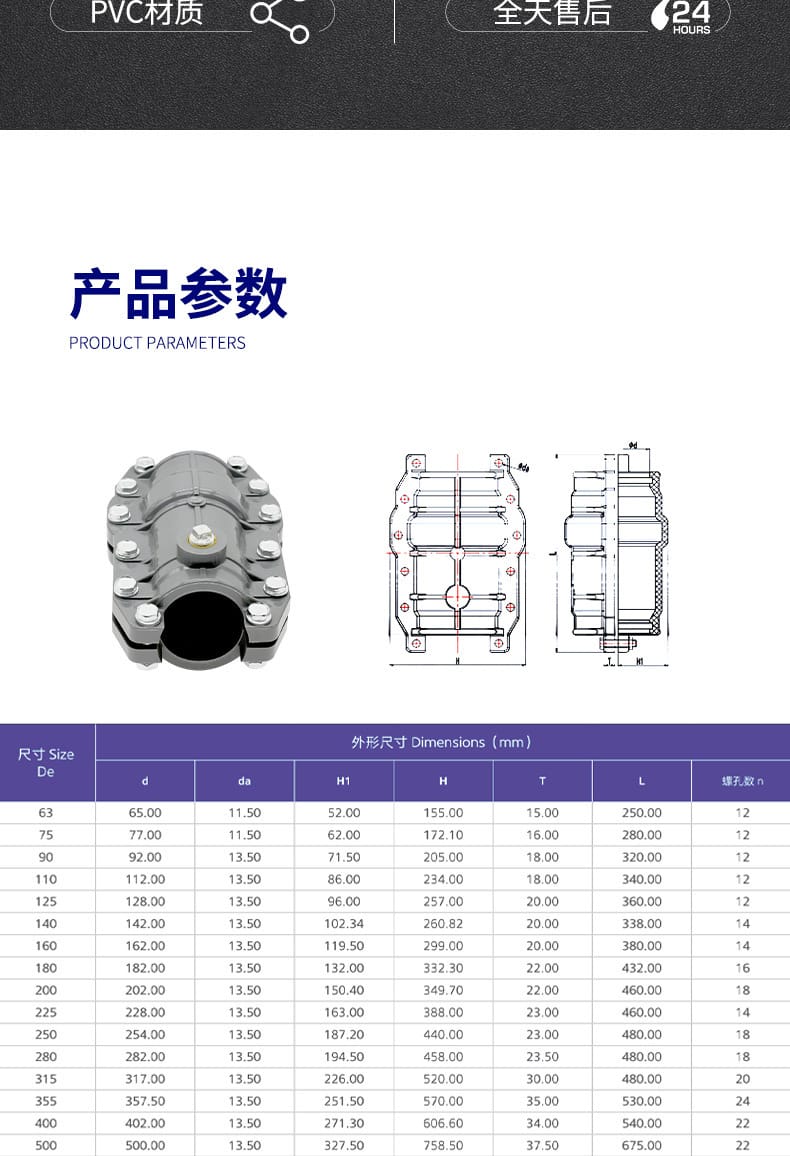

| 外形尺寸 De (mm) | 尺寸 d (mm) | da (mm) | H1 (mm) | H (mm) | T (mm) | L (mm) | 螺孔數(shù) n |
|---|---|---|---|---|---|---|---|
| 63 | 65.00 | 11.50 | 52.00 | 155.00 | 15.00 | 250.00 | 12 |
| 75 | 77.00 | 11.50 | 62.00 | 172.10 | 16.00 | 280.00 | 12 |
| 90 | 92.00 | 13.50 | 71.50 | 205.00 | 18.00 | 320.00 | 12 |
| 110 | 112.00 | 13.50 | 86.00 | 234.00 | 18.00 | 340.00 | 12 |
| 125 | 128.00 | 13.50 | 96.00 | 257.00 | 20.00 | 360.00 | 12 |
| 140 | 142.00 | 13.50 | 102.34 | 260.82 | 20.00 | 338.00 | 14 |
| 160 | 162.00 | 13.50 | 119.50 | 299.00 | 20.00 | 380.00 | 14 |
| 180 | 182.00 | 13.50 | 132.00 | 332.30 | 22.00 | 432.00 | 16 |
| 200 | 202.00 | 13.50 | 150.40 | 349.70 | 22.00 | 460.00 | 18 |
| 225 | 228.00 | 13.50 | 163.00 | 388.00 | 23.00 | 460.00 | 14 |
| 250 | 254.00 | 13.50 | 187.20 | 440.00 | 23.00 | 480.00 | 18 |
| 280 | 282.00 | 13.50 | 194.50 | 458.00 | 23.50 | 480.00 | 18 |
| 315 | 317.00 | 13.50 | 226.00 | 520.00 | 30.00 | 480.00 | 20 |
| 355 | 357.50 | 13.50 | 251.50 | 570.00 | 35.00 | 530.00 | 24 |
| 400 | 402.00 | 13.50 | 271.30 | 606.60 | 34.00 | 540.00 | 22 |
| 500 | 500.00 | 13.50 | 327.50 | 758.50 | 37.50 | 675.00 | 22 |
