廣泛應用于過程工業中的液體分析領域，特別適用于化工、石化、食品飲料等行業中容器或大口徑管道內的連續濃度監測與質量控制。

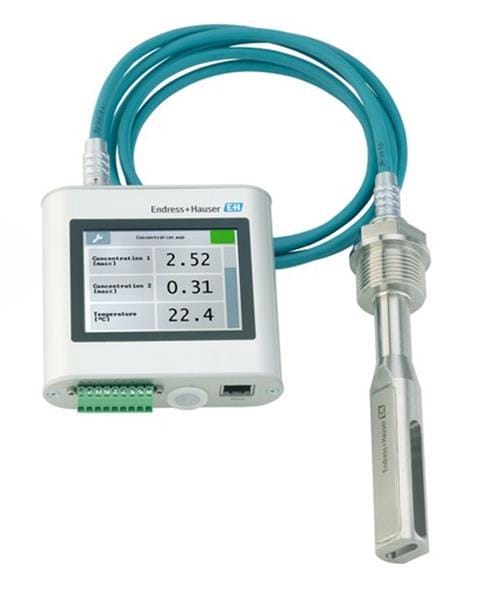

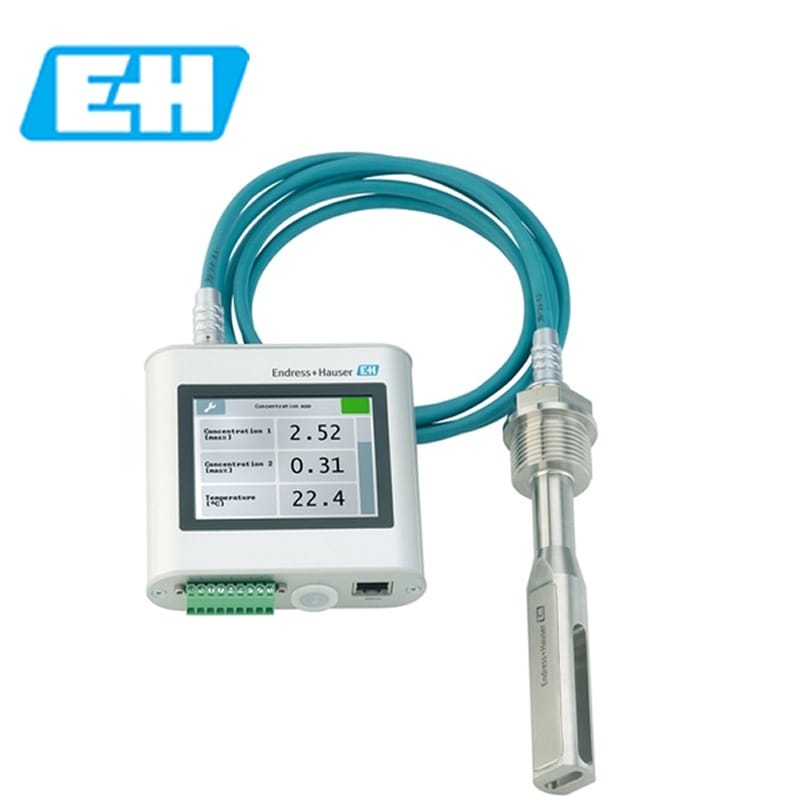

The insertion measuring device Teqwave I was developed for accurate real-time liquid analysis in vessels and larger pipes. Dedicated to in situ concentration measurement, Teqwave monitors up to four measured values and thus reduces operational expenditure of a skid. Match your Teqwave transmitter perfectly to your production needs: You can individually define and extend your application range by use of the flexible app concept.
Easy and efficient – real-time in situ liquid analysis
Full transparency – constant monitoring of product quality without sampling
Highest process safety – reliable metering due to robust, maintenance-free sensor
Cost-saving – fewer measuring points due to multivariable measurement
Customized usage – innovative app concept, easily expendable for changing measuring tasks
Simplified process control – user-friendly operation and clear status visualization
Local data backup – integrated data storage for measured values up to 7,5 years
The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
Continuous concentration measurement of liquids in vessels or large pipes.
Device properties
Accurate and independent of flow profile
Insertion length: 180 mm (7") or 500 mm (20")
Industry-compliant, easy installation via DIN rail
3.5" TFT color touch display or LED indication
4-20 mA, Modbus TCP
Ultrasonic concentration
智能的插入式濃度測量儀表，應用靈活，為您量身定制。使用簡單、高效：實時在線液體分析。能夠連續測量容器或大口徑管道中液體的濃度。
完全透明：不間斷監測產品質量，無需抽檢。最高過程安全性：傳感器堅固耐用，免維護，計量可靠。使用經濟：多變量測量所需測量點數量更少。高測量精度，不受流場的影響。插入深度：180 mm (7")或500 mm (20")。
按需定制：創新的app理念，改造升級簡單，輕松應對各類測量任務。簡化過程控制：操作友好，狀態顯示清晰?，F(xiàn)場數據備份：內置測量值數據存儲單元，保存時間長達7.5年。符合工業標準，便捷地安裝在DIN導軌上。3.5" TFT彩色顯示屏或LED指示燈標識。
插入深度：180 mm (7")或500 mm (20")
濃度
密度
聲速
溫度
密度：±0.01g/cm³
溫度：±0.5K
聲速：2m/s
濃度符合濃度app中的數據表，最大為0...100 %
聲速：600...2000 m/s
溫度濃度app數據表，最高0...+100 °C (32...+212 °F)
密度：0.7...1.5 g/cm³
最大16 bar (232 psi)，20 °C (68 °F)時
0...100 °C (32...212 °F)
0...+50 °C (32...122 °F)
不銹鋼V4A 1.4571
傳感器：IP68（帶電纜插頭）、IP66（無電纜連接頭）
變送器：IP40
LED狀態指示燈
TFT彩色觸摸顯示屏
4...20 mA / Modbus TCP
24 VDC（18...35 V）
CE認證、C-Tick認證
......................................................................................................................................................................................................................................................................................................................................
